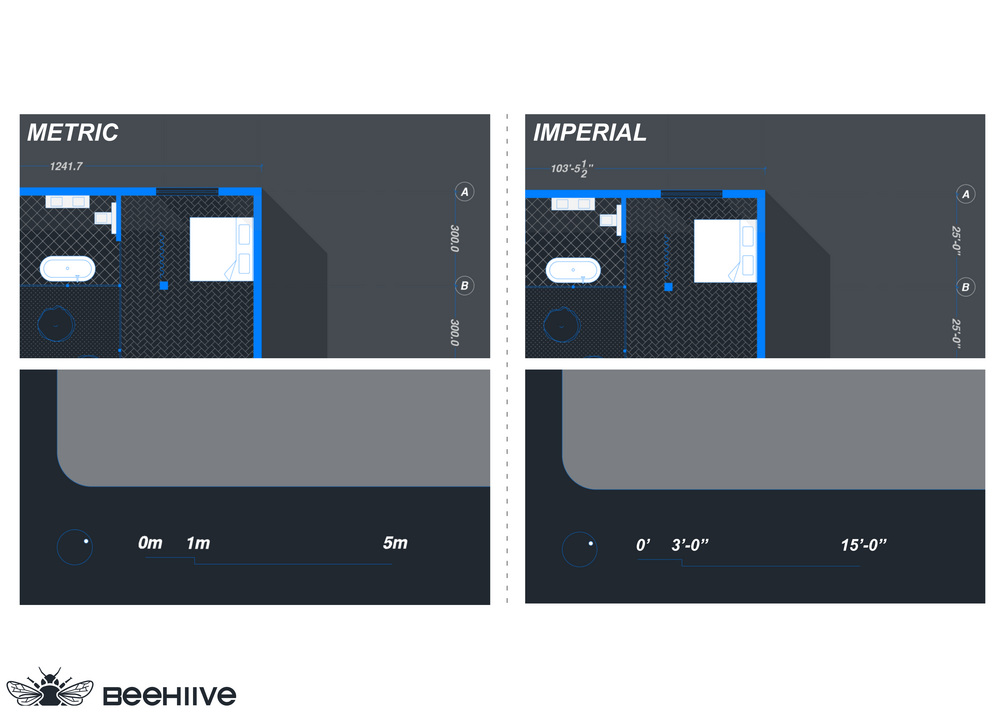

AutoCAD Master Template by BEEHIIVE DESIGN. (Metric/Imperial)

190 OBJECTS

(FURNITURE & DYNAMIC BLOCKS, TREES, TEXT STYLES, LINE TYPES, HATCHES, & MUCH MORE)

What's in the .dwg file:

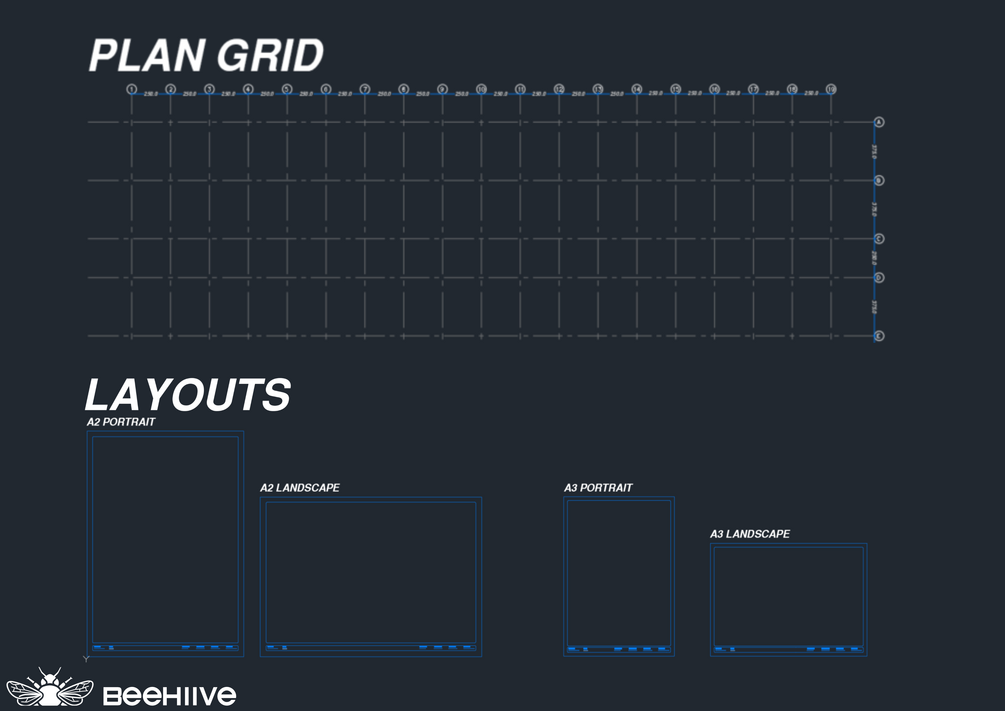

1. 36 furniture blocks and furniture combinations
2. 7 cars in different views (plan, front & side views)
3. 11 different line types
4. 5 text styles
5. 8 dynamic blocks (windows & doors)
6. 25 people in plan view
7. 32 people silhouettes in elevation view
8. 1 dynamic tree with 7 variations for creating a personalized landscape design and adjusting it later
9. 8 trees in elevation view
10. 7 roads & parking spaces symbols for your garage plans
11. 4 title sheet layouts (A2 & A3)
12. 14 north arrows

Instructions for use:

DYNAMIC BLOCKS: are blocks which can change either in size or in appearance. The file contains dynamic windows and doors, which can be adjusted in size with the help of the down facing arrow when the block is selected. The same is valid for the tree block, where the arrow shows a list of 9 different trees. This allows for full flexibility of changing the appearance of trees when creating plans - the same block can be dispersed throughout the plan and then later adjusted to your own taste.

LINE TYPES, TEXT STYLES AND HATCHES can easily be applied to your project elements simply by using the 'Match Properties' command and selecting the desired style.

FURNITURE, PEOPLE, PLANTS & TREES' all have assigned corresponding layer settings. Their visual appearance can be manipulated by changing the layer settings (lineweight, color, type, etc.)

Supported versions:

AutoCAD 2013 and above and any program which can read CAD drawings.

(mockup: shorturl.at/aiy58)
